Comparing Efficient Multi-Head Attention Implementations#

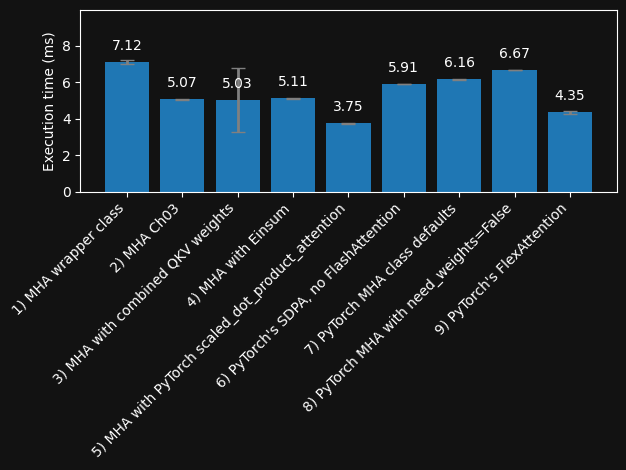

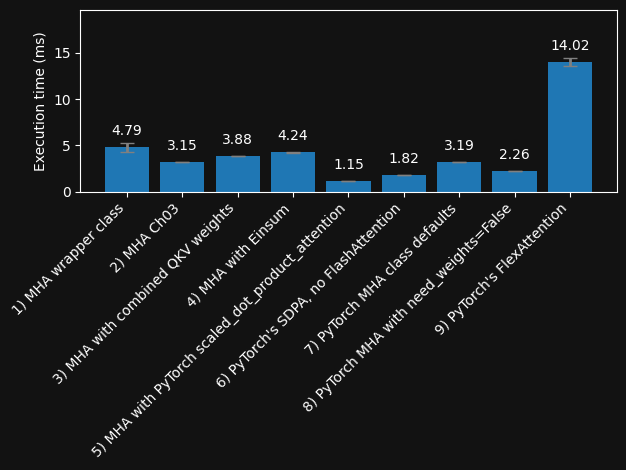

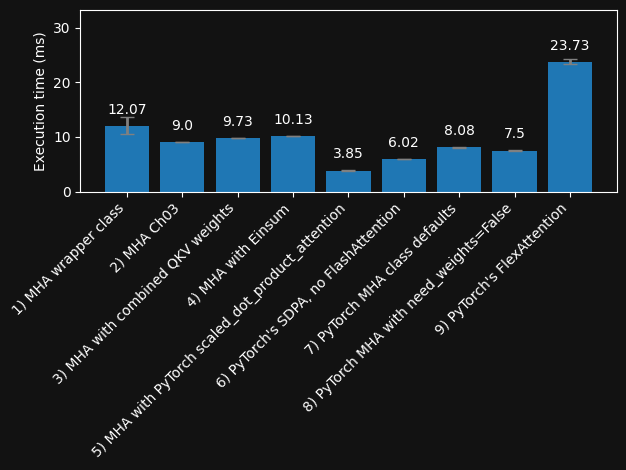

This code notebook compares different ways to implement causal multi-head attention used in decoder-style LLMs like GPT, Llama, etc.
import torch
torch.manual_seed(123)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"PyTorch version: {torch.__version__}")
batch_size = 8
context_len = 1024
embed_dim = 768
embeddings = torch.randn((batch_size, context_len, embed_dim), device=device)
---------------------------------------------------------------------------
ModuleNotFoundError Traceback (most recent call last)
Cell In[1], line 1
----> 1 import torch
3 torch.manual_seed(123)
4 device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
ModuleNotFoundError: No module named 'torch'
To run all the code in this notebook, please ensure you update to at least PyTorch 2.5 (FlexAttention is not included in earlier PyTorch releases)
If the code cell above shows a PyTorch version lower than 2.5, you can upgrade your PyTorch installation by uncommenting and running the following code cell (Please note that PyTorch 2.5 requires Python 3.9 or later)
For more specific instructions and CUDA versions, please refer to the official installation guide at https://pytorch.org
# pip install --upgrade torch torchvision torchaudio
1) CausalAttention MHA wrapper class from chapter 3#
import torch.nn as nn
class CausalAttention(nn.Module):
def __init__(self, d_in, d_out, context_length, dropout, qkv_bias=False):
super().__init__()
self.d_out = d_out
self.W_query = nn.Linear(d_in, d_out, bias=qkv_bias)
self.W_key = nn.Linear(d_in, d_out, bias=qkv_bias)
self.W_value = nn.Linear(d_in, d_out, bias=qkv_bias)
self.dropout = nn.Dropout(dropout) # New
self.register_buffer("mask", torch.triu(torch.ones(context_length, context_length), diagonal=1)) # New
def forward(self, x):
b, num_tokens, d_in = x.shape # New batch dimension b
keys = self.W_key(x)
queries = self.W_query(x)
values = self.W_value(x)
attn_scores = queries @ keys.transpose(1, 2) # Changed transpose
attn_scores.masked_fill_( # New, _ ops are in-place
self.mask.bool()[:num_tokens, :num_tokens], -torch.inf)
attn_weights = torch.softmax(attn_scores / keys.shape[-1]**0.5, dim=-1)
attn_weights = self.dropout(attn_weights) # New
context_vec = attn_weights @ values
return context_vec
class Ch03_MHA_Wrapper(nn.Module):
def __init__(self, d_in, d_out, context_length, dropout, num_heads, qkv_bias=False):
super().__init__()
self.heads = nn.ModuleList(
[CausalAttention(d_in, d_out, context_length, dropout, qkv_bias)
for _ in range(num_heads)]
)
self.out_proj = nn.Linear(d_out*num_heads, d_out*num_heads)
def forward(self, x):
context_vec = torch.cat([head(x) for head in self.heads], dim=-1)
return self.out_proj(context_vec)
mha_ch03_wrapper = Ch03_MHA_Wrapper(
d_in=embed_dim,
d_out=embed_dim//12,
context_length=context_len,
dropout=0.0,
num_heads=12,
qkv_bias=False
).to(device)
out = mha_ch03_wrapper(embeddings)
print(out.shape)
torch.Size([8, 1024, 768])
2) The multi-head attention class from chapter 3#
class Ch03_MHA(nn.Module):
def __init__(self, d_in, d_out, context_length, dropout, num_heads, qkv_bias=False):
super().__init__()
assert d_out % num_heads == 0, "d_out must be divisible by num_heads"
self.d_out = d_out
self.num_heads = num_heads
self.head_dim = d_out // num_heads # Reduce the projection dim to match desired output dim
self.W_query = nn.Linear(d_in, d_out, bias=qkv_bias)
self.W_key = nn.Linear(d_in, d_out, bias=qkv_bias)
self.W_value = nn.Linear(d_in, d_out, bias=qkv_bias)
self.out_proj = nn.Linear(d_out, d_out) # Linear layer to combine head outputs
self.dropout = nn.Dropout(dropout)
self.register_buffer("mask", torch.triu(torch.ones(context_length, context_length), diagonal=1))
def forward(self, x):
b, num_tokens, d_in = x.shape
keys = self.W_key(x) # Shape: (b, num_tokens, d_out)
queries = self.W_query(x)
values = self.W_value(x)
# We implicitly split the matrix by adding a `num_heads` dimension
# Unroll last dim: (b, num_tokens, d_out) -> (b, num_tokens, num_heads, head_dim)
keys = keys.view(b, num_tokens, self.num_heads, self.head_dim)
values = values.view(b, num_tokens, self.num_heads, self.head_dim)
queries = queries.view(b, num_tokens, self.num_heads, self.head_dim)
# Transpose: (b, num_tokens, num_heads, head_dim) -> (b, num_heads, num_tokens, head_dim)
keys = keys.transpose(1, 2)
queries = queries.transpose(1, 2)
values = values.transpose(1, 2)
# Compute scaled dot-product attention (aka self-attention) with a causal mask
attn_scores = queries @ keys.transpose(2, 3) # Dot product for each head
# Original mask truncated to the number of tokens and converted to boolean
mask_bool = self.mask.bool()[:num_tokens, :num_tokens]
# Use the mask to fill attention scores
attn_scores.masked_fill_(mask_bool, -torch.inf)
attn_weights = torch.softmax(attn_scores / keys.shape[-1]**0.5, dim=-1)
attn_weights = self.dropout(attn_weights)
# Shape: (b, num_tokens, num_heads, head_dim)
context_vec = (attn_weights @ values).transpose(1, 2)
# Combine heads, where self.d_out = self.num_heads * self.head_dim
context_vec = context_vec.contiguous().view(b, num_tokens, self.d_out)
context_vec = self.out_proj(context_vec) # optional projection
return context_vec
mha_ch03 = Ch03_MHA(
d_in=embed_dim,
d_out=embed_dim,
context_length=context_len,
dropout=0.0,
num_heads=12,
qkv_bias=False
).to(device)
out = mha_ch03(embeddings)
print(out.shape)
torch.Size([8, 1024, 768])
3) An alternative multi-head attention with combined weights#
The code for the
MultiHeadAttentionCombinedQKVclass below is based on code that was kindly shared by Rayed Bin WahedThe main difference between the
MultiHeadAttentionCombinedQKVclass and theMultiHeadAttentionclass used in chapter 3 is thatMultiHeadAttentionCombinedQKVuses a single weight matrix,self.qkv = nn.Linear(d_in, 3 * d_out, bias=qkv_bias)instead of separate weight matrices:self.W_query = nn.Linear(d_in, d_out, bias=qkv_bias)self.W_key = nn.Linear(d_in, d_out, bias=qkv_bias)self.W_value = nn.Linear(d_in, d_out, bias=qkv_bias)
Here,
self.qkvcombines all three weight matricesself.W_query,self.W_key, andself.W_valueto carry out the query, key, and value computation in a single stepUsing
q, k, v = qkv.unbind(0), we obtain the individual query, key, and value tensors, which are then used similarly to the query, key, and value tensors in theMultiHeadAttentionclass in chapter 3
import torch.nn as nn
class MultiHeadAttentionCombinedQKV(nn.Module):
def __init__(self, d_in, d_out, num_heads, context_length, dropout=0.0, qkv_bias=False):
super().__init__()
assert d_out % num_heads == 0, "embed_dim is indivisible by num_heads"
self.num_heads = num_heads
self.context_length = context_length
self.head_dim = d_out // num_heads
self.qkv = nn.Linear(d_in, 3 * d_out, bias=qkv_bias)
self.proj = nn.Linear(d_out, d_out)
self.dropout = nn.Dropout(dropout)
self.register_buffer(
"mask", torch.triu(torch.ones(context_length, context_length), diagonal=1)
)
def forward(self, x):
batch_size, num_tokens, embed_dim = x.shape
# (b, num_tokens, embed_dim) --> (b, num_tokens, 3 * embed_dim)
qkv = self.qkv(x)
# (b, num_tokens, 3 * embed_dim) --> (b, num_tokens, 3, num_heads, head_dim)
qkv = qkv.view(batch_size, num_tokens, 3, self.num_heads, self.head_dim)
# (b, num_tokens, 3, num_heads, head_dim) --> (3, b, num_heads, num_tokens, head_dim)
qkv = qkv.permute(2, 0, 3, 1, 4)
# (3, b, num_heads, num_tokens, head_dim) -> 3 times (b, num_head, num_tokens, head_dim)
queries, keys, values = qkv.unbind(0)
# (b, num_heads, num_tokens, head_dim) --> (b, num_heads, num_tokens, num_tokens)
attn_scores = queries @ keys.transpose(-2, -1)
attn_scores = attn_scores.masked_fill(
self.mask.bool()[:num_tokens, :num_tokens], -torch.inf
)
attn_weights = torch.softmax(attn_scores / keys.shape[-1]**-0.5, dim=-1)
attn_weights = self.dropout(attn_weights)
# (b, num_heads, num_tokens, num_tokens) --> (b, num_heads, num_tokens, head_dim)
context_vec = attn_weights @ values
# (b, num_heads, num_tokens, head_dim) --> (b, num_tokens, num_heads, head_dim)
context_vec = context_vec.transpose(1, 2)
# (b, num_tokens, num_heads, head_dim) --> (b, num_tokens, embed_dim)
context_vec = context_vec.contiguous().view(batch_size, num_tokens, embed_dim)
context_vec = self.proj(context_vec)
return context_vec
mha_combined_qkv = MultiHeadAttentionCombinedQKV(
d_in=embed_dim,
d_out=embed_dim,
context_length=context_len,
dropout=0.0,
num_heads=12,
qkv_bias=False
).to(device)
out = mha_combined_qkv(embeddings)
print(out.shape)
torch.Size([8, 1024, 768])
4) Multi-head attention with Einsum#
Implementing multi-head attention using Einstein summation via
torch.einsum
import math
class MHAEinsum(nn.Module):
def __init__(self, d_in, d_out, context_length, dropout, num_heads, qkv_bias=False):
super().__init__()
assert d_out % num_heads == 0, "d_out must be divisible by num_heads"
self.d_out = d_out
self.num_heads = num_heads
self.head_dim = d_out // num_heads
# Initialize parameters for Q, K, V
self.W_query = nn.Parameter(torch.randn(d_out, d_in))
self.W_key = nn.Parameter(torch.randn(d_out, d_in))
self.W_value = nn.Parameter(torch.randn(d_out, d_in))
if qkv_bias:
self.bias_q = nn.Parameter(torch.zeros(d_out))
self.bias_k = nn.Parameter(torch.zeros(d_out))
self.bias_v = nn.Parameter(torch.zeros(d_out))
else:
self.register_parameter("bias_q", None)
self.register_parameter("bias_k", None)
self.register_parameter("bias_v", None)
self.out_proj = nn.Linear(d_out, d_out)
self.dropout = nn.Dropout(dropout)
self.register_buffer("mask", torch.triu(torch.ones(context_length, context_length), diagonal=1))
# Initialize parameters
self.reset_parameters()
def reset_parameters(self):
nn.init.kaiming_uniform_(self.W_query, a=math.sqrt(5))
nn.init.kaiming_uniform_(self.W_key, a=math.sqrt(5))
nn.init.kaiming_uniform_(self.W_value, a=math.sqrt(5))
if self.bias_q is not None:
fan_in, _ = nn.init._calculate_fan_in_and_fan_out(self.W_query)
bound = 1 / math.sqrt(fan_in)
nn.init.uniform_(self.bias_q, -bound, bound)
nn.init.uniform_(self.bias_k, -bound, bound)
nn.init.uniform_(self.bias_v, -bound, bound)
def forward(self, x):
b, n, _ = x.shape
# Calculate Q, K, V using einsum, first perform linear transformations
Q = torch.einsum("bnd,di->bni", x, self.W_query)
K = torch.einsum("bnd,di->bni", x, self.W_key)
V = torch.einsum("bnd,di->bni", x, self.W_value)
# Add biases if they are used
if self.bias_q is not None:
Q += self.bias_q
K += self.bias_k
V += self.bias_v
# Reshape for multi-head attention
Q = Q.view(b, n, self.num_heads, self.head_dim).transpose(1, 2)
K = K.view(b, n, self.num_heads, self.head_dim).transpose(1, 2)
V = V.view(b, n, self.num_heads, self.head_dim).transpose(1, 2)
# Scaled dot-product attention
scores = torch.einsum("bhnd,bhmd->bhnm", Q, K) / (self.head_dim ** 0.5)
# Apply mask
mask = self.mask[:n, :n].unsqueeze(0).unsqueeze(1).expand(b, self.num_heads, n, n)
scores = scores.masked_fill(mask.bool(), -torch.inf)
# Softmax and dropout
attn_weights = torch.softmax(scores, dim=-1)
attn_weights = self.dropout(attn_weights)
# Aggregate the attended context vectors
context_vec = torch.einsum("bhnm,bhmd->bhnd", attn_weights, V)
# Combine heads and project the output
context_vec = context_vec.transpose(1, 2).reshape(b, n, self.d_out)
context_vec = self.out_proj(context_vec)
return context_vec
mha_einsum = MHAEinsum(
d_in=embed_dim,
d_out=embed_dim,
context_length=context_len,
dropout=0.0,
num_heads=12,
qkv_bias=False
).to(device)
out = mha_einsum(embeddings)
print(out.shape)
torch.Size([8, 1024, 768])
5) Multi-head attention with PyTorch’s scaled dot product attention and FlashAttention#
The implementation below uses PyTorch’s
scaled_dot_product_attentionfunction, which implements a memory-optimized version of self-attention called FlashAttention
class MHAPyTorchScaledDotProduct(nn.Module):
def __init__(self, d_in, d_out, num_heads, context_length, dropout=0.0, qkv_bias=False):
super().__init__()
assert d_out % num_heads == 0, "embed_dim is indivisible by num_heads"
self.num_heads = num_heads
self.context_length = context_length
self.head_dim = d_out // num_heads
self.d_out = d_out
self.qkv = nn.Linear(d_in, 3 * d_out, bias=qkv_bias)
self.proj = nn.Linear(d_out, d_out)
self.dropout = dropout
def forward(self, x):
batch_size, num_tokens, embed_dim = x.shape
# (b, num_tokens, embed_dim) --> (b, num_tokens, 3 * embed_dim)
qkv = self.qkv(x)
# (b, num_tokens, 3 * embed_dim) --> (b, num_tokens, 3, num_heads, head_dim)
qkv = qkv.view(batch_size, num_tokens, 3, self.num_heads, self.head_dim)
# (b, num_tokens, 3, num_heads, head_dim) --> (3, b, num_heads, num_tokens, head_dim)
qkv = qkv.permute(2, 0, 3, 1, 4)
# (3, b, num_heads, num_tokens, head_dim) -> 3 times (b, num_heads, num_tokens, head_dim)
queries, keys, values = qkv
use_dropout = 0. if not self.training else self.dropout
context_vec = nn.functional.scaled_dot_product_attention(
queries, keys, values, attn_mask=None, dropout_p=use_dropout, is_causal=True)
# Combine heads, where self.d_out = self.num_heads * self.head_dim
context_vec = context_vec.transpose(1, 2).contiguous().view(batch_size, num_tokens, self.d_out)
context_vec = self.proj(context_vec)
return context_vec
mha_pytorch_scaled = MHAPyTorchScaledDotProduct(
d_in=embed_dim,
d_out=embed_dim,
context_length=context_len,
dropout=0.0,
num_heads=12,
qkv_bias=False
).to(device)
out = mha_pytorch_scaled(embeddings)
print(out.shape)
torch.Size([8, 1024, 768])
6) PyTorch’s scaled dot product attention without FlashAttention#
This is similar to above, except that we disable FlashAttention by passing an explicit causal mask
class MHAPyTorchSDPAWithoutFlash(nn.Module):
def __init__(self, d_in, d_out, num_heads, context_length, dropout=0.0, qkv_bias=False):
super().__init__()
assert d_out % num_heads == 0, "embed_dim is indivisible by num_heads"
self.num_heads = num_heads
self.context_length = context_length
self.head_dim = d_out // num_heads
self.d_out = d_out
self.qkv = nn.Linear(d_in, 3 * d_out, bias=qkv_bias)
self.proj = nn.Linear(d_out, d_out)
self.dropout = dropout
self.register_buffer("mask", torch.triu(torch.ones(context_length, context_length), diagonal=1).bool())
def forward(self, x):
batch_size, num_tokens, embed_dim = x.shape
# (b, num_tokens, embed_dim) --> (b, num_tokens, 3 * embed_dim)
qkv = self.qkv(x)
# (b, num_tokens, 3 * embed_dim) --> (b, num_tokens, 3, num_heads, head_dim)
qkv = qkv.view(batch_size, num_tokens, 3, self.num_heads, self.head_dim)
# (b, num_tokens, 3, num_heads, head_dim) --> (3, b, num_heads, num_tokens, head_dim)
qkv = qkv.permute(2, 0, 3, 1, 4)
# (3, b, num_heads, num_tokens, head_dim) -> 3 times (b, num_heads, num_tokens, head_dim)
queries, keys, values = qkv
use_dropout = 0. if not self.training else self.dropout
# Ensure attn_mask is compatible with expected shape and `batch_first=True`
# No need to manually adjust for num_heads; ensure it's right for the sequence
if self.context_length >= num_tokens:
attn_mask = self.mask[:num_tokens, :num_tokens]
else:
attn_mask = self.mask[:self.context_length, :self.context_length]
context_vec = nn.functional.scaled_dot_product_attention(
queries, keys, values, attn_mask=attn_mask, dropout_p=use_dropout, is_causal=False)
# Combine heads, where self.d_out = self.num_heads * self.head_dim
context_vec = context_vec.transpose(1, 2).contiguous().view(batch_size, num_tokens, self.d_out)
context_vec = self.proj(context_vec)
return context_vec
mha_pytorch_sdpa_no_flash = MHAPyTorchSDPAWithoutFlash(
d_in=embed_dim,
d_out=embed_dim,
context_length=context_len,
dropout=0.0,
num_heads=12,
qkv_bias=False
).to(device)
out = mha_pytorch_sdpa_no_flash(embeddings)
print(out.shape)
torch.Size([8, 1024, 768])
7) Using PyTorch’s torch.nn.MultiheadAttention#
Below, we use PyTorch’s torch.nn.MultiheadAttention implementation
import torch.nn as nn
class MHAPyTorchClass(nn.Module):
def __init__(self, d_in, d_out, num_heads, context_length, dropout=0.0, qkv_bias=False, need_weights=True):
super().__init__()
self.context_length = context_length
self.multihead_attn = nn.MultiheadAttention(
embed_dim=d_out,
num_heads=num_heads,
dropout=dropout,
bias=qkv_bias,
add_bias_kv=qkv_bias,
batch_first=True,
)
self.need_weights = need_weights
self.proj = nn.Linear(d_out, d_out)
self.register_buffer("mask", torch.triu(torch.ones(context_length, context_length), diagonal=1).bool())
def forward(self, x):
batch_size, num_tokens, _ = x.shape
# Ensure attn_mask is compatible with expected shape and `batch_first=True`
# No need to manually adjust for num_heads; ensure it's right for the sequence
if self.context_length >= num_tokens:
attn_mask = self.mask[:num_tokens, :num_tokens]
else:
attn_mask = self.mask[:self.context_length, :self.context_length]
# attn_mask broadcasting will handle batch_size dimension implicitly
attn_output, _ = self.multihead_attn(
x, x, x, attn_mask=attn_mask, need_weights=self.need_weights
)
output = self.proj(attn_output)
return output
mha_pytorch_class_default = MHAPyTorchClass(
d_in=embed_dim,
d_out=embed_dim,
context_length=context_len,
dropout=0.0,
num_heads=12,
qkv_bias=False
).to(device)
out = mha_pytorch_class_default(embeddings)
print(out.shape)
torch.Size([8, 1024, 768])
8) Using PyTorch’s torch.nn.MultiheadAttention with scaled_dot_product_attention#
Set
need_weights(defaultTrue) toFalseso thatMultiheadAttentionusesscaled_dot_product_attentionaccording to the documentation
need_weights: If specified, returns `attn_output_weights` in addition to `attn_outputs`.
Set `need_weights=False` to use the optimized `scaled_dot_product_attention`
and achieve the best performance for MHA.
Default: `True`
mha_pytorch_class_noweights = MHAPyTorchClass(
d_in=embed_dim,
d_out=embed_dim,
context_length=context_len,
dropout=0.0,
num_heads=12,
qkv_bias=False,
need_weights=False # NEW!
).to(device)
out = mha_pytorch_class_noweights(embeddings)
print(out.shape)
torch.Size([8, 1024, 768])
9) Using PyTorch’s FlexAttention#
See FlexAttention: The Flexibility of PyTorch with the Performance of FlashAttention to learn more about FlexAttention
FlexAttention caveat: It currently doesn’t support dropout
This is supported starting from PyTorch 2.5, which you can install on a CPU machine via
pip install torch torchvision torchaudio
To install PyTorch on a GPU machine, use the following (for more information, also see the installation menu on pytorch.org)
pip install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu124
from packaging.version import parse as parse_version
def normalize_version(version):
parsed_version = parse_version(version)
return parse_version(f"{parsed_version.major}.{parsed_version.minor}.{parsed_version.micro}")
current_version = normalize_version(torch.__version__)
MIN_TORCH_VERSION = "2.5.0"
required_version = parse_version(MIN_TORCH_VERSION)
if current_version >= required_version and torch.cuda.is_available():
from torch.nn.attention.flex_attention import flex_attention, create_block_mask
def causal(b, h, q_idx, kv_idx):
return q_idx >= kv_idx
class MHAPyTorchFlexAttention(nn.Module):
def __init__(self, d_in, d_out, num_heads, context_length, dropout=0.0, qkv_bias=False):
super().__init__()
assert d_out % num_heads == 0, "embed_dim is indivisible by num_heads"
self.num_heads = num_heads
self.context_length = context_length
self.head_dim = d_out // num_heads
self.d_out = d_out
self.qkv = nn.Linear(d_in, 3 * d_out, bias=qkv_bias)
self.proj = nn.Linear(d_out, d_out)
self.dropout = dropout
# self.register_buffer("block_mask", create_block_mask(causal, B=None, H=None, Q_LEN=context_length, KV_LEN=context_length))
# `create_block_mask` function does not support buffers, yet
self.block_mask = create_block_mask(causal, B=None, H=None, Q_LEN=context_length, KV_LEN=context_length)
def forward(self, x):
batch_size, num_tokens, embed_dim = x.shape
# (b, num_tokens, embed_dim) --> (b, num_tokens, 3 * embed_dim)
qkv = self.qkv(x)
# (b, num_tokens, 3 * embed_dim) --> (b, num_tokens, 3, num_heads, head_dim)
qkv = qkv.view(batch_size, num_tokens, 3, self.num_heads, self.head_dim)
# (b, num_tokens, 3, num_heads, head_dim) --> (3, b, num_heads, num_tokens, head_dim)
qkv = qkv.permute(2, 0, 3, 1, 4)
# (3, b, num_heads, num_tokens, head_dim) -> 3 times (b, num_heads, num_tokens, head_dim)
queries, keys, values = qkv
# use_dropout = 0. if not self.training else self.dropout
# Ensure attn_mask is compatible with expected shape and `batch_first=True`
# No need to manually adjust for num_heads; ensure it's right for the sequence
if self.context_length >= num_tokens:
attn_mask = self.block_mask[:num_tokens, :num_tokens]
else:
attn_mask = self.block_mask[:self.context_length, :self.context_length]
context_vec = flex_attention(queries, keys, values, block_mask=attn_mask)
# Combine heads, where self.d_out = self.num_heads * self.head_dim
context_vec = context_vec.transpose(1, 2).contiguous().view(batch_size, num_tokens, self.d_out)
context_vec = self.proj(context_vec)
return context_vec
if current_version >= required_version and torch.cuda.is_available():
mha_pytorch_flex = MHAPyTorchFlexAttention(
d_in=embed_dim,
d_out=embed_dim,
context_length=context_len,
dropout=0.0,
num_heads=12,
qkv_bias=False
).to(device)
out = mha_pytorch_flex(embeddings)
print(out.shape)
torch.Size([8, 1024, 768])
Quick speed comparison (M3 Macbook Air CPU)#
torch.manual_seed(123)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"PyTorch version: {torch.__version__}")
print(f"Running on {device}")
PyTorch version: 2.4.0
Running on cpu
## 1) CausalAttention MHA wrapper class from chapter 3
%timeit mha_ch03_wrapper(embeddings)
179 ms ± 7.39 ms per loop (mean ± std. dev. of 7 runs, 1 loop each)
## 2) The multi-head attention class from chapter 3
%timeit mha_ch03(embeddings)
166 ms ± 2.62 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)
## 3) An alternative multi-head attention with combined weights
%timeit mha_combined_qkv(embeddings)
190 ms ± 2.03 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)
## 4) Multi-head attention using Einstein summation
%timeit mha_einsum(embeddings)
196 ms ± 1.08 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)
## 5) Multi-head attention with PyTorch's scaled dot product attention
%timeit mha_pytorch_scaled(embeddings)
110 ms ± 423 µs per loop (mean ± std. dev. of 7 runs, 10 loops each)
## 6) PyTorch's scaled dot product attention without FlashAttention
%timeit mha_pytorch_sdpa_no_flash(embeddings)
99.5 ms ± 790 µs per loop (mean ± std. dev. of 7 runs, 10 loops each)
## 7) Using PyTorch's torch.nn.MultiheadAttention
%timeit mha_pytorch_class_default(embeddings)
198 ms ± 3.52 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)
## 8) Using PyTorch's torch.nn.MultiheadAttention disabling `need_weights`
%timeit mha_pytorch_class_noweights(embeddings)
168 ms ± 2.63 ms per loop (mean ± std. dev. of 7 runs, 10 loops each)
## 9) Using PyTorch's FlexAttention
# Requires PyTorch 2.5.0 or newer and currently only supports CUDA PyTorch
%timeit mha_pytorch_flex(embeddings)
Quick speed comparison (Nvidia A100 GPU)#
# Enable tensor cores
torch.set_float32_matmul_precision("high")
torch.manual_seed(123)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"PyTorch version: {torch.__version__}")
print(f"Running on {device}")
PyTorch version: 2.6.0+cu124
Running on cuda
## 1) CausalAttention MHA wrapper class from chapter 3
%timeit mha_ch03_wrapper(embeddings)
4.68 ms ± 121 µs per loop (mean ± std. dev. of 7 runs, 100 loops each)
## 2) The multi-head attention class from chapter 3
%timeit mha_ch03(embeddings)
3.08 ms ± 195 ns per loop (mean ± std. dev. of 7 runs, 1000 loops each)
## 3) An alternative multi-head attention with combined weights
%timeit mha_combined_qkv(embeddings)
3.81 ms ± 532 ns per loop (mean ± std. dev. of 7 runs, 100 loops each)
## 4) Multi-head attention using Einstein summation
%timeit mha_einsum(embeddings)
4.11 ms ± 170 ns per loop (mean ± std. dev. of 7 runs, 100 loops each)
## 5) Multi-head attention with PyTorch's scaled dot product attention
%timeit mha_pytorch_scaled(embeddings)
1.1 ms ± 800 ns per loop (mean ± std. dev. of 7 runs, 1000 loops each)
## 6) PyTorch's scaled dot product attention without FlashAttention
%timeit mha_pytorch_sdpa_no_flash(embeddings)
1.8 ms ± 93.6 µs per loop (mean ± std. dev. of 7 runs, 100 loops each)
## 7) Using PyTorch's torch.nn.MultiheadAttention
%timeit mha_pytorch_class_default(embeddings)
3.04 ms ± 394 ns per loop (mean ± std. dev. of 7 runs, 100 loops each)
## 8) Using PyTorch's torch.nn.MultiheadAttention disabling `need_weights`
%timeit mha_pytorch_class_noweights(embeddings)
2.13 ms ± 4.48 µs per loop (mean ± std. dev. of 7 runs, 100 loops each)
## 9) Using PyTorch's FlexAttention
# Requires PyTorch 2.5.0 or newer
%timeit mha_pytorch_flex(embeddings)
13.9 ms ± 557 µs per loop (mean ± std. dev. of 7 runs, 1 loop each)
Visualizations#
torch.manual_seed(123)
device = torch.device("cuda" if torch.cuda.is_available() else "cpu")
print(f"PyTorch version: {torch.__version__}")
print(f"Running on {device}")
PyTorch version: 2.6.0+cu124
Running on cuda
functions = {
"1) MHA wrapper class": mha_ch03_wrapper,
"2) MHA Ch03": mha_ch03,
"3) MHA with combined QKV weights": mha_combined_qkv,
"4) MHA with Einsum": mha_einsum,
"5) MHA with PyTorch scaled_dot_product_attention": mha_pytorch_scaled,
"6) PyTorch's SDPA, no FlashAttention": mha_pytorch_sdpa_no_flash,
"7) PyTorch MHA class defaults": mha_pytorch_class_default,
"8) PyTorch MHA with need_weights=False": mha_pytorch_class_noweights
}
if current_version >= required_version and torch.cuda.is_available():
functions["9) PyTorch's FlexAttention"] = mha_pytorch_flex
import matplotlib.pyplot as plt
# Customize further for dark mode aesthetics
plt.rcParams["figure.facecolor"] = "#121212"
plt.rcParams["axes.facecolor"] = "#121212"
plt.rcParams["axes.edgecolor"] = "white"
plt.rcParams["axes.labelcolor"] = "white"
plt.rcParams["text.color"] = "white"
plt.rcParams["xtick.color"] = "white"
plt.rcParams["ytick.color"] = "white"
plt.rcParams["grid.color"] = "#444444"
plt.rcParams["lines.linewidth"] = 2
plt.rcParams["lines.markersize"] = 8
def plot_execution_times(functions, execution_means, execution_stds, filename):
# Create plot
fig, ax = plt.subplots()
bars = ax.bar(functions.keys(), execution_means, yerr=execution_stds, capsize=5, error_kw={'ecolor': 'grey'})
plt.ylabel("Execution time (ms)")
plt.xticks(rotation=45, ha="right")
# Calculate new ylim with a margin
max_execution_time = max(execution_means)
upper_ylim = max_execution_time + 0.4 * max_execution_time # Adding a 40% margin
plt.ylim(0, upper_ylim)
# Annotate bars with execution times
for bar in bars:
yval = bar.get_height()
plt.text(bar.get_x() + bar.get_width()/2, yval + (0.05 * upper_ylim), round(yval, 2), ha="center", va="bottom")
plt.tight_layout()
plt.savefig(filename)
plt.show()
Speed comparison (Nvidia A100 GPU) with warmup (forward pass only)#
# CUDA benchmark code shared by Andrei Aksionov
# and based on code from
# https://github.com/cuda-mode/lectures/blob/main/lecture1/pytorch_square.py
import numpy as np
def time_pytorch_function(func, *input, num_repeats=1_000):
start = torch.cuda.Event(enable_timing=True)
end = torch.cuda.Event(enable_timing=True)
# Warmup
for _ in range(5):
func(*input)
torch.cuda.synchronize()
times = []
for _ in range(num_repeats):
start.record()
func(*input)
end.record()
torch.cuda.synchronize()
times.append(start.elapsed_time(end))
return np.mean(times), np.std(times)
execution_stats = [time_pytorch_function(fn, embeddings) for fn in functions.values()]
execution_means = [stat[0] for stat in execution_stats]
execution_stds = [stat[1] for stat in execution_stats]
plot_execution_times(functions, execution_means, execution_stds, filename="1_forward-only.pdf")
Speed comparison (Nvidia A100 GPU) with warmup (forward and backward pass)#
def forward_backward(func, embeddings):
if embeddings.grad is not None:
embeddings.grad.zero_()
output = func(embeddings)
loss = output.sum()
loss.backward()
def time_pytorch_function_forward_backward(func, *input, num_repeats = 1_000):
# CUDA IS ASYNC so can't use python time module
start = torch.cuda.Event(enable_timing=True)
end = torch.cuda.Event(enable_timing=True)
# Warmup
for _ in range(5):
forward_backward(func, *input)
torch.cuda.synchronize()
times = []
for _ in range(num_repeats):
start.record()
forward_backward(func, *input)
end.record()
torch.cuda.synchronize()
times.append(start.elapsed_time(end))
return np.mean(times), np.std(times)
execution_stats = [time_pytorch_function_forward_backward(fn, embeddings) for fn in functions.values()]
execution_means = [stat[0] for stat in execution_stats]
execution_stds = [stat[1] for stat in execution_stats]
plot_execution_times(functions, execution_means, execution_stds, filename="2_forward-and-backward.pdf")
Speed comparison (Nvidia A100 GPU) with warmup and compilation (forward and backward pass)#
import torch._dynamo
torch._dynamo.config.suppress_errors = True
def prepare_function(fn):
fn = torch.compile(fn)
return fn
execution_stats = [time_pytorch_function_forward_backward(prepare_function(fn), embeddings) for fn in functions.values()]
execution_means = [stat[0] for stat in execution_stats]
execution_stds = [stat[1] for stat in execution_stats]
plot_execution_times(functions, execution_means, execution_stds, filename="3_forward-and-backward-compiled.pdf")
