Converting Llama 2 to Llama 3.2 From Scratch

Converting Llama 2 to Llama 3.2 From Scratch#

This is a follow-up notebook to Converting a From-Scratch GPT Architecture to Llama 2, converting Meta AI’s Llama 2 architecture model step by step to Llama 3, Llama 3.1, and Llama 3.2
The explanations are purposefully kept minimal in this notebook so as not to bloat it unnecessarily and focus on the main code
For more information about the architectures, please see the Llama 2 and Llama 3 papers
Llama 2: Open Foundation and Fine-Tuned Chat Models (2023)
The Llama 3 Herd of Models

# pip install -r requirements-extra.txt

Packages that are being used in this notebook:

from importlib.metadata import version

pkgs = [
    "blobfile",         # to download pretrained weights
    "huggingface_hub",  # to download pretrained weights
    "tiktoken",         # to implement the tokenizer
    "torch",            # to implement the model
]
for p in pkgs:
    print(f"{p} version: {version(p)}")

---------------------------------------------------------------------------
PackageNotFoundError                      Traceback (most recent call last)
Cell In[2], line 10
      3 pkgs = [
      4     "blobfile",         # to download pretrained weights
      5     "huggingface_hub",  # to download pretrained weights
      6     "tiktoken",         # to implement the tokenizer
      7     "torch",            # to implement the model
      8 ]
      9 for p in pkgs:
---> 10     print(f"{p} version: {version(p)}")

File /Library/Frameworks/Python.framework/Versions/3.10/lib/python3.10/importlib/metadata/__init__.py:946, in version(distribution_name)
    939 def version(distribution_name):
    940     """Get the version string for the named package.
    941
    942     :param distribution_name: The name of the distribution package to query.
    943     :return: The version string for the package as defined in the package's
    944         "Version" metadata key.
    945     """
--> 946     return distribution(distribution_name).version

File /Library/Frameworks/Python.framework/Versions/3.10/lib/python3.10/importlib/metadata/__init__.py:919, in distribution(distribution_name)
    913 def distribution(distribution_name):
    914     """Get the ``Distribution`` instance for the named package.
    915
    916     :param distribution_name: The name of the distribution package as a string.
    917     :return: A ``Distribution`` instance (or subclass thereof).
    918     """
--> 919     return Distribution.from_name(distribution_name)

File /Library/Frameworks/Python.framework/Versions/3.10/lib/python3.10/importlib/metadata/__init__.py:518, in Distribution.from_name(cls, name)
    516         return dist
    517 else:
--> 518     raise PackageNotFoundError(name)

PackageNotFoundError: No package metadata was found for blobfile

1. Convert the Llama model implementation step by step#

If you are new to implementing LLM architectures, I recommend starting with chapter 4, which walks you through the implementation of the original GPT architecture step by step
The Converting a From-Scratch GPT Architecture to Llama 2 then implements the Llama-specific components, such as RMSNorm layers, SiLU and SwiGLU activations, RoPE (rotary position embeddings), and the SentencePiece tokenizer
This notebook takes the Llama 2 architecture and transforms it into Llama 3 architecture by
1. modifying the rotary embeddings
2. implementing grouped-query attention
3. and using a customized version of the GPT-4 tokenizer
Later, we then load the original Llama 3 weights shared by Meta AI into the architecture

1.1 Reusing Llama 2 components#

Llama 2 is actually quite similar to Llama 3, as mentioned above and illustrated in the figure at the top of this notebook
This means that we can import several building blocks from the Llama 2 notebook using the following code

import os
import sys
import io
import nbformat
import types

def import_from_notebook():
    def import_definitions_from_notebook(fullname, names):
        current_dir = os.getcwd()
        path = os.path.join(current_dir, fullname + ".ipynb")
        path = os.path.normpath(path)

        # Load the notebook
        if not os.path.exists(path):
            raise FileNotFoundError(f"Notebook file not found at: {path}")

        with io.open(path, "r", encoding="utf-8") as f:
            nb = nbformat.read(f, as_version=4)

        # Create a module to store the imported functions and classes
        mod = types.ModuleType(fullname)
        sys.modules[fullname] = mod

        # Go through the notebook cells and only execute function or class definitions
        for cell in nb.cells:
            if cell.cell_type == "code":
                cell_code = cell.source
                for name in names:
                    # Check for function or class definitions
                    if f"def {name}" in cell_code or f"class {name}" in cell_code:
                        exec(cell_code, mod.__dict__)
        return mod

    fullname = "converting-gpt-to-llama2"
    names = ["precompute_rope_params", "compute_rope", "SiLU", "FeedForward", "RMSNorm", "MultiHeadAttention"]

    return import_definitions_from_notebook(fullname, names)

imported_module = import_from_notebook()

# We need to redefine precompute_rope_params
# precompute_rope_params = getattr(imported_module, "precompute_rope_params", None)
compute_rope = getattr(imported_module, "compute_rope", None)
SiLU = getattr(imported_module, "SiLU", None)
FeedForward = getattr(imported_module, "FeedForward", None)
RMSNorm = getattr(imported_module, "RMSNorm", None)

# MultiHeadAttention only for comparison purposes
MultiHeadAttention = getattr(imported_module, "MultiHeadAttention", None)

1.2 Modified RoPE#

Llama 3 uses rotary position embeddings (RoPE) similar to Llama 2 (for a detailed explanation, please see the RoPE paper)
There are some subtle differences in the RoPE settings, though
Llama 3 now supports up to 8,192 tokens, twice as many as Llama 2 (4,096)
The base value for the so-called RoPE \(\theta\) (see equation below) was increased from 10,000 (Llama 2) to 500,000 (Llama 3) in the following equation (adapted from the RoPE paper)

\[\Theta = \left\{\theta_i = \text{base}^{\frac{-2(i-1)}{d}}, i \in \left[1, 2, ..., d/2\right]\right\}\]

These \(\theta\) values are a set of predefined parameters that are used to determine the rotational angles in the rotary matrix, where \(d\) is the dimensionality of the embedding space
Increasing the base from 10,000 to 500,000 makes the frequencies (or rotation angles) decay more slowly across the dimensions, which means that higher dimensions will be associated with larger angles than before (essentially, it’s a decompression of the frequencies)
In addition, we introduce a freq_config section in the code below that adjusts the frequency; however, we won’t be needing it in Llama 3 (only Llama 3.1 and Llama 3.2), so we will revisit this freq_config later (it’s set to None and ignored by default)

import torch

def precompute_rope_params(head_dim, theta_base=10_000, context_length=4096, freq_config=None):
    assert head_dim % 2 == 0, "Embedding dimension must be even"

    # Compute the inverse frequencies
    inv_freq = 1.0 / (theta_base ** (torch.arange(0, head_dim, 2)[: (head_dim // 2)].float() / head_dim))

    ################################ NEW ###############################################
    # Frequency adjustments
    if freq_config is not None:
        low_freq_wavelen = freq_config["original_context_length"] / freq_config["low_freq_factor"]
        high_freq_wavelen = freq_config["original_context_length"] / freq_config["high_freq_factor"]

        wavelen = 2 * torch.pi / inv_freq

        inv_freq_llama = torch.where(
            wavelen > low_freq_wavelen, inv_freq / freq_config["factor"], inv_freq
        )

        smooth_factor = (freq_config["original_context_length"] / wavelen - freq_config["low_freq_factor"]) / (
            freq_config["high_freq_factor"] - freq_config["low_freq_factor"]
        )

        smoothed_inv_freq = (
            (1 - smooth_factor) * (inv_freq / freq_config["factor"]) + smooth_factor * inv_freq
        )

        is_medium_freq = (wavelen <= low_freq_wavelen) & (wavelen >= high_freq_wavelen)
        inv_freq_llama = torch.where(is_medium_freq, smoothed_inv_freq, inv_freq_llama)
        inv_freq = inv_freq_llama
    ####################################################################################


    # Generate position indices
    positions = torch.arange(context_length)

    # Compute the angles
    angles = positions[:, None] * inv_freq[None, :]  # Shape: (context_length, head_dim // 2)

    # Expand angles to match the head_dim
    angles = torch.cat([angles, angles], dim=1)  # Shape: (context_length, head_dim)

    # Precompute sine and cosine
    cos = torch.cos(angles)
    sin = torch.sin(angles)

    return cos, sin

To summarize, what’s new so far for Llama 3 compared to Llama 2 are the context length and theta base parameter:

# Instantiate RoPE parameters

llama_2_context_len = 4096
llama_3_context_len = 8192

llama_2_theta_base = 10_000
llama_3_theta_base = 500_000

The usage remains the same as before in Llama 2:

# Settings
batch_size = 2
num_heads = 4
head_dim = 16

# Instantiate RoPE parameters
cos, sin = precompute_rope_params(
    head_dim=head_dim,
    theta_base=llama_3_theta_base,
    context_length=llama_3_context_len
)

# Dummy query and key tensors
torch.manual_seed(123)
queries = torch.randn(batch_size, num_heads, llama_3_context_len, head_dim)
keys = torch.randn(batch_size, num_heads, llama_3_context_len, head_dim)

# Apply rotary position embeddings
queries_rot = compute_rope(queries, cos, sin)
keys_rot = compute_rope(keys, cos, sin)

1.3 Grouped-query attention#

In this section, we replace multi-head attention (MHA) with an alternative mechanism called grouped-query attention (GQA)
In short, one can think of GQA as a more compute- and parameter-efficient version of MHA
In GQA, we reduce the number of key and value projections by sharing them among multiple attention heads
Each attention head still has its unique query, but these queries attend to the same group of keys and values

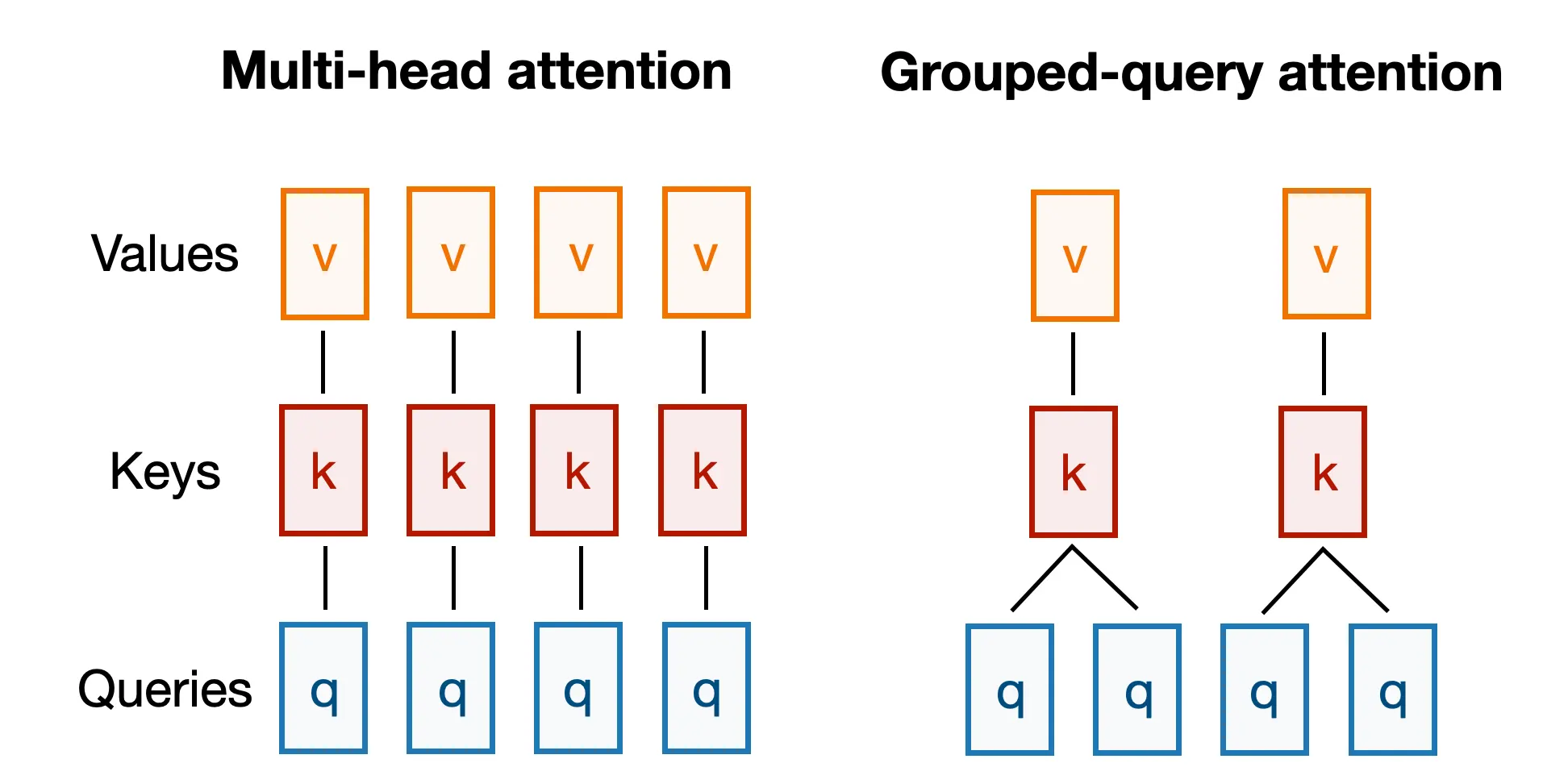

Below is an illustration of GQA with 2 key-value-groups (kv-groups):

The main idea behind GQA is to reduce the number of unique query groups that attend to the key-value pairs, reducing the size of some of the matrix multiplications and the number of parameters in MHA without significantly reducing modeling performance
The GQA code is very similar to MHA (I highlighted the changes below via the “NEW” sections)
In short, the main change in GQA is that each query group needs to be repeated to match the number of heads it is associated with, as implemented below

In addition, we also introduce a SharedBuffers class that will allow us to reuse the mask, cos, and sin tensors in the transformer blocks to improve efficiency (this will be crucial when working with models such as Llama 3.1 and 3.2 later, which support up to 131k input tokens)

import torch.nn as nn


############################# NEW  #############################
class SharedBuffers:
    _buffers = {}

    @staticmethod
    def get_buffers(context_length, head_dim, rope_base, freq_config, dtype=torch.float32):
        key = (context_length, head_dim, rope_base, tuple(freq_config.values()) if freq_config else freq_config, dtype)

        if key not in SharedBuffers._buffers:
            # Create or fetch the buffers
            mask = torch.triu(torch.ones(context_length, context_length), diagonal=1)
            cos, sin = precompute_rope_params(head_dim, rope_base, context_length, freq_config)
            if dtype is not None:
                cos = cos.to(dtype)
                sin = sin.to(dtype)
            SharedBuffers._buffers[key] = (mask, cos, sin)

        return SharedBuffers._buffers[key]
############################# NEW  #############################


class GroupedQueryAttention(nn.Module):
    def __init__(
            self, d_in, d_out, context_length, num_heads,
            num_kv_groups,       # NEW
            rope_base=10_000,    # NEW
            rope_config=None,    # NEW
            dtype=None
        ):
        super().__init__()
        assert d_out % num_heads == 0, "d_out must be divisible by num_heads"
        assert num_heads % num_kv_groups == 0, "num_heads must be divisible by num_kv_groups"  # NEW

        self.d_out = d_out
        self.num_heads = num_heads
        self.head_dim = d_out // num_heads

        ############################# NEW  #############################
        # self.W_key = nn.Linear(d_in, d_out, bias=False, dtype=dtype)
        # self.W_value = nn.Linear(d_in, d_out, bias=False, dtype=dtype)
        self.W_key = nn.Linear(d_in, num_kv_groups * self.head_dim, bias=False, dtype=dtype)
        self.W_value = nn.Linear(d_in, num_kv_groups * self.head_dim, bias=False, dtype=dtype)
        self.num_kv_groups = num_kv_groups
        self.group_size = num_heads // num_kv_groups
        ################################################################

        self.W_query = nn.Linear(d_in, d_out, bias=False, dtype=dtype)
        self.out_proj = nn.Linear(d_out, d_out, bias=False, dtype=dtype)

        ############################# NEW  #############################
        # Fetch buffers using SharedBuffers
        mask, cos, sin = SharedBuffers.get_buffers(context_length, self.head_dim, rope_base, rope_config, dtype)
        ############################# NEW  #############################

        self.register_buffer("mask", mask)
        self.register_buffer("cos", cos)
        self.register_buffer("sin", sin)

    def forward(self, x):
        b, num_tokens, d_in = x.shape

        queries = self.W_query(x)  # Shape: (b, num_tokens, d_out)
        keys = self.W_key(x)  # Shape: (b, num_tokens, num_kv_groups * head_dim)
        values = self.W_value(x)  # Shape: (b, num_tokens, num_kv_groups * head_dim)

        # Reshape queries, keys, and values
        queries = queries.view(b, num_tokens, self.num_heads, self.head_dim)

        ##################### NEW  #####################
        # keys = keys.view(b, num_tokens, self.num_heads, self.head_dim)
        # values = values.view(b, num_tokens, self.num_heads, self.head_dim)
        keys = keys.view(b, num_tokens, self.num_kv_groups, self.head_dim)
        values = values.view(b, num_tokens, self.num_kv_groups, self.head_dim)
        ################################################

        # Transpose keys, values, and queries
        keys = keys.transpose(1, 2)  # Shape: (b, num_heads, num_tokens, head_dim)
        values = values.transpose(1, 2)  # Shape: (b, num_heads, num_tokens, head_dim)
        queries = queries.transpose(1, 2)  # Shape: (b, num_query_groups, num_tokens, head_dim)

        # Apply RoPE
        keys = compute_rope(keys, self.cos, self.sin)
        queries = compute_rope(queries, self.cos, self.sin)

        ##################### NEW  #####################
        # Expand keys and values to match the number of heads
        # Shape: (b, num_heads, num_tokens, head_dim)

        keys = keys.repeat_interleave(self.group_size, dim=1)  # Shape: (b, num_heads, num_tokens, head_dim)
        values = values.repeat_interleave(self.group_size, dim=1)  # Shape: (b, num_heads, num_tokens, head_dim)
        # For example, before repeat_interleave along dim=1 (query groups):
        #   [K1, K2]
        # After repeat_interleave (each query group is repeated group_size times):
        #   [K1, K1, K2, K2]
        # If we used regular repeat instead of repeat_interleave, we'd get:
        #   [K1, K2, K1, K2]
        ################################################

        # Compute scaled dot-product attention (aka self-attention) with a causal mask
        # Shape: (b, num_heads, num_tokens, num_tokens)
        attn_scores = queries @ keys.transpose(2, 3)  # Dot product for each head

        # Original mask truncated to the number of tokens and converted to boolean
        mask_bool = self.mask.bool()[:num_tokens, :num_tokens]

        # Use the mask to fill attention scores
        attn_scores.masked_fill_(mask_bool, -torch.inf)

        attn_weights = torch.softmax(attn_scores / keys.shape[-1]**0.5, dim=-1)
        assert keys.shape[-1] == self.head_dim

        # Shape: (b, num_tokens, num_heads, head_dim)
        context_vec = (attn_weights @ values).transpose(1, 2)

        # Combine heads, where self.d_out = self.num_heads * self.head_dim
        context_vec = context_vec.reshape(b, num_tokens, self.d_out)
        context_vec = self.out_proj(context_vec)  # optional projection

        return context_vec

To illustrate the parameter savings, consider the following multi-head attention example from the GPT and Llama 2 code:

# Settings
batch_size = 1
context_len = 3000
max_context_len = 8192
embed_dim = 4096
num_heads = 32


example_batch = torch.randn((batch_size, context_len, embed_dim))

mha = MultiHeadAttention(
    d_in=embed_dim,
    d_out=embed_dim,
    context_length=max_context_len,
    num_heads=num_heads
)

mha(example_batch)

print("W_key:", mha.W_key.weight.shape)
print("W_value:", mha.W_value.weight.shape)
print("W_query:", mha.W_query.weight.shape)

W_key: torch.Size([4096, 4096])
W_value: torch.Size([4096, 4096])
W_query: torch.Size([4096, 4096])

Now, if we use grouped-query attention instead, with 8 kv-groups (that’s how many Llama 3 8B uses), we can see that the number of rows of the key and value matrices are reduced by a factor of 4 (because 32 attention heads divided by 8 kv-groups is 4)

gqa = GroupedQueryAttention(
    d_in=embed_dim,
    d_out=embed_dim,
    context_length=max_context_len,
    num_heads=num_heads,
    num_kv_groups=8,
    rope_base=llama_3_theta_base
)

gqa(example_batch)

print("W_key:", gqa.W_key.weight.shape)
print("W_value:", gqa.W_value.weight.shape)
print("W_query:", gqa.W_query.weight.shape)

W_key: torch.Size([1024, 4096])
W_value: torch.Size([1024, 4096])
W_query: torch.Size([4096, 4096])

As a side note, to make the GroupedQueryAttention equivalent to standard multi-head attention, you can set the number of query groups (num_kv_groups) equal to the number of heads (num_heads)
Lastly, let’s compare the number of parameters below:

print("Total number of parameters:")

mha_total_params = sum(p.numel() for p in mha.parameters())
print(f"MHA: {mha_total_params:,}")

gqa_total_params = sum(p.numel() for p in gqa.parameters())
print(f"GQA: {gqa_total_params:,}")

Total number of parameters:
MHA: 67,108,864
GQA: 41,943,040

# Free up memory:
del mha
del gqa

1.4 Update the TransformerBlock module#

Next, we update the TransformerBlock
Here, we simply swap MultiHeadAttention with GroupedQueryAttention and add the new RoPE settings

class TransformerBlock(nn.Module):
    def __init__(self, cfg):
        super().__init__()
        self.att =  GroupedQueryAttention(  # MultiHeadAttention(
            d_in=cfg["emb_dim"],
            d_out=cfg["emb_dim"],
            context_length=cfg["context_length"],
            num_heads=cfg["n_heads"],
            num_kv_groups=cfg["n_kv_groups"],  # NEW
            rope_base=cfg["rope_base"],        # NEW
            rope_config=cfg["rope_freq"],      # NEW
            dtype=cfg["dtype"]
        )
        self.ff = FeedForward(cfg)
        self.norm1 = RMSNorm(cfg["emb_dim"], eps=1e-5)
        self.norm2 = RMSNorm(cfg["emb_dim"], eps=1e-5)

    def forward(self, x):
        # Shortcut connection for attention block
        shortcut = x
        x = self.norm1(x)
        x = self.att(x.to(torch.bfloat16))   # Shape [batch_size, num_tokens, emb_size]
        x = x + shortcut  # Add the original input back

        # Shortcut connection for feed-forward block
        shortcut = x
        x = self.norm2(x)
        x = self.ff(x.to(torch.bfloat16))
        x = x + shortcut  # Add the original input back

        return x

1.5 Defining the model class#

When setting up the model class, we fortunately don’t have to do much; we just update the name to Llama3Model

# class Llama2Model(nn.Module):
class Llama3Model(nn.Module):
    def __init__(self, cfg):
        super().__init__()
        self.tok_emb = nn.Embedding(cfg["vocab_size"], cfg["emb_dim"], dtype=cfg["dtype"])

        self.trf_blocks = nn.Sequential(
            *[TransformerBlock(cfg) for _ in range(cfg["n_layers"])])

        self.final_norm = RMSNorm(cfg["emb_dim"], eps=1e-5)
        self.out_head = nn.Linear(cfg["emb_dim"], cfg["vocab_size"], bias=False, dtype=cfg["dtype"])

    def forward(self, in_idx):
        tok_embeds = self.tok_emb(in_idx)
        x = tok_embeds
        x = self.trf_blocks(x)
        x = self.final_norm(x)
        logits = self.out_head(x.to(torch.bfloat16))
        return logits

2. Initialize model#

Now we can define a Llama 3 config file (the Llama 2 config file is shown for comparison)

LLAMA2_CONFIG_7B = {
    "vocab_size": 32_000,    # Vocabulary size
    "context_length": 4096,  # Context length
    "emb_dim": 4096,         # Embedding dimension
    "n_heads": 32,           # Number of attention heads
    "n_layers": 32,          # Number of layers
    "hidden_dim": 11_008,    # Size of the intermediate dimension in FeedForward
    "dtype": torch.bfloat16  # Lower-precision dtype to reduce memory usage
}

LLAMA3_CONFIG_8B = {
    "vocab_size": 128_256,   # NEW: Larger vocabulary size
    "context_length": 8192,  # NEW: Larger context length
    "emb_dim": 4096,         # Embedding dimension
    "n_heads": 32,           # Number of attention heads
    "n_layers": 32,          # Number of layers
    "hidden_dim": 14_336,    # NEW: Larger size of the intermediate dimension in FeedForward
    "n_kv_groups": 8,        # NEW: Key-Value groups for grouped-query attention
    "rope_base": 500_000.0,  # NEW: The base in RoPE's "theta" was increased to 500_000
    "rope_freq": None,       # NEW: Additional configuration for adjusting the RoPE frequencies
    "dtype": torch.bfloat16  # Lower-precision dtype to reduce memory usage
}

Using these settings, we can now initialize a Llama 3 8B model
Note that this requires ~34 GB of memory (for comparison, Llama 2 7B required ~26 GB of memory)

model = Llama3Model(LLAMA3_CONFIG_8B)

The following is expected to print True to confirm buffers are reused instead of being (wastefully) recreated:

# Check buffers
print(model.trf_blocks[0].att.mask is model.trf_blocks[-1].att.mask)
print(model.trf_blocks[0].att.cos is model.trf_blocks[-1].att.cos)
print(model.trf_blocks[0].att.sin is model.trf_blocks[-1].att.sin)

Let’s now also compute the number of trainable parameters:

total_params = sum(p.numel() for p in model.parameters())
print(f"Total number of parameters: {total_params:,}")

Total number of parameters: 8,030,261,248

As shown above, the model contains 8 billion parameters
Additionally, we can calculate the memory requirements for this model using the code below:

def model_memory_size(model, input_dtype=torch.float32):
    total_params = 0
    total_grads = 0
    for param in model.parameters():
        # Calculate total number of elements per parameter
        param_size = param.numel()
        total_params += param_size
        # Check if gradients are stored for this parameter
        if param.requires_grad:
            total_grads += param_size

    # Calculate buffer size (non-parameters that require memory)
    total_buffers = sum(buf.numel() for buf in model.buffers())

    # Size in bytes = (Number of elements) * (Size of each element in bytes)
    # We assume parameters and gradients are stored in the same type as input dtype
    element_size = torch.tensor(0, dtype=input_dtype).element_size()
    total_memory_bytes = (total_params + total_grads + total_buffers) * element_size

    # Convert bytes to gigabytes
    total_memory_gb = total_memory_bytes / (1024**3)

    return total_memory_gb

print(f"float32 (PyTorch default): {model_memory_size(model, input_dtype=torch.float32):.2f} GB")
print(f"bfloat16: {model_memory_size(model, input_dtype=torch.bfloat16):.2f} GB")

float32 (PyTorch default): 68.08 GB
bfloat16: 34.04 GB

Lastly, we can also transfer the model to an NVIDIA or Apple Silicon GPU if applicable:

if torch.cuda.is_available():
    device = torch.device("cuda")
elif torch.backends.mps.is_available():
    device = torch.device("mps")
else:
    device = torch.device("cpu")

model.to(device);

3. Load tokenizer#

In this section, we are going to load the tokenizer for the model
Llama 2 used Google’s SentencePiece tokenizer instead of OpenAI’s BPE tokenizer based on the Tiktoken library
Llama 3, however, reverted back to using the BPE tokenizer from Tiktoken; specifically, it uses the GPT-4 tokenizer with an extended vocabulary
You can find the original Tiktoken-adaptation by Meta AI here in their official Llama 3 repository
Below, I rewrote the tokenizer code to make it more readable and minimal for this notebook (but the behavior should be similar)

from pathlib import Path

import tiktoken
from tiktoken.load import load_tiktoken_bpe


class Tokenizer:
    def __init__(self, model_path):
        assert os.path.isfile(model_path), f"Model file {model_path} not found"
        mergeable_ranks = load_tiktoken_bpe(model_path)

        self.special_tokens = {
            "<|begin_of_text|>": 128000,
            "<|end_of_text|>": 128001,
            "<|start_header_id|>": 128006,
            "<|end_header_id|>": 128007,
            "<|eot_id|>": 128009,
        }
        self.special_tokens.update({
            f"<|reserved_{i}|>": 128002 + i for i in range(256) if (128002 + i) not in self.special_tokens.values()
        })

        self.model = tiktoken.Encoding(
            name=Path(model_path).name,
            pat_str=r"(?i:'s|'t|'re|'ve|'m|'ll|'d)|[^\r\n\p{L}\p{N}]?\p{L}+|\p{N}{1,3}| ?[^\s\p{L}\p{N}]+[\r\n]*|\s*[\r\n]+|\s+(?!\S)|\s+",
            mergeable_ranks=mergeable_ranks,
            special_tokens=self.special_tokens
        )


    def encode(self, text, bos=False, eos=False, allowed_special=set(), disallowed_special=()):
        if bos:
            tokens = [self.special_tokens["<|begin_of_text|>"]]
        else:
            tokens = []

        tokens += self.model.encode(text, allowed_special=allowed_special, disallowed_special=disallowed_special)

        if eos:
            tokens.append(self.special_tokens["<|end_of_text|>"])
        return tokens

    def decode(self, tokens):
        return self.model.decode(tokens)

Meta AI shared the original Llama 3 model weights and tokenizer vocabulary on the Hugging Face Hub
We will first download the tokenizer vocabulary from the Hub and load it into the code above

Please note that Meta AI requires that you accept the Llama 3 licensing terms before you can download the files; to do this, you have to create a Hugging Face Hub account and visit the meta-llama/Meta-Llama-3-8B repository to accept the terms
Next, you will need to create an access token; to generate an access token with READ permissions, click on the profile picture in the upper right and click on “Settings”

Then, create and copy the access token so you can copy & paste it into the next code cell

from huggingface_hub import login
import json

with open("config.json", "r") as config_file:
    config = json.load(config_file)
    access_token = config["HF_ACCESS_TOKEN"]

login(token=access_token)

The token has not been saved to the git credentials helper. Pass `add_to_git_credential=True` in this function directly or `--add-to-git-credential` if using via `huggingface-cli` if you want to set the git credential as well.
Token is valid (permission: read).
Your token has been saved to /root/.cache/huggingface/token
Login successful

After login via the access token, which is necessary to verify that we accepted the Llama 3 licensing terms, we can now download the tokenizer vocabulary:

from huggingface_hub import hf_hub_download

tokenizer_file_path = hf_hub_download(
    repo_id="meta-llama/Meta-Llama-3-8B",
    filename="original/tokenizer.model",
    local_dir="Llama-3-8B"
)

Note that for using Llama 3 files, we may need the blobfile package, which is used when handling datasets or models stored in cloud storage solutions like Google Cloud Storage (GCS), Azure Blob Storage, or Amazon S3
You can install this dependency by uncommenting and executing the pip command below

# pip install blobfile

tokenizer = Tokenizer(tokenizer_file_path)

We can now use the generate function to have the Llama 3 model generate new text:

from previous_chapters import generate, text_to_token_ids, token_ids_to_text
# If the `previous_chapters.py` file is not available locally,
# you can import it from the `llms-from-scratch` PyPI package.
# For details, see: https://github.com/rasbt/LLMs-from-scratch/tree/main/pkg
# E.g.,
# from llms_from_scratch.ch05 import generate, text_to_token_ids, token_ids_to_text


torch.manual_seed(123)

token_ids = generate(
    model=model,
    idx=text_to_token_ids("Every effort", tokenizer).to(device),
    max_new_tokens=30,
    context_size=LLAMA3_CONFIG_8B["context_length"],
    top_k=1,
    temperature=0.
)

print("Output text:\n", token_ids_to_text(token_ids, tokenizer))

Output text:
 Every effort_dead aeros Ingredients başında.extensionégor clangmissions güc như submodule.and report官方%，.Reader(",");
ामल ندار Parliamentary !!! HigginsDynamicZhgmt writeln Globalsletion 사진------

Of course, as we can see above, the text is nonsensical since we haven’t trained the Llama 3 model yet
In the next section, instead of training it ourselves, which would cost tens to hundreds of thousands of dollars, we load the pretrained weights from Meta AI

4. Load pretrained weights#

We are loading the “meta-llama/Meta-Llama-3-8B” base model below, which is a simple text completion model before finetuning
Alternatively, you can load the instruction-finetuned and aligned “meta-llama/Meta-Llama-3-8B-Instruct” model by modifying the string in the next code cell accordingly
Combined, the weight files are about 16 GB large

from safetensors.torch import load_file

combined_weights = {}

for i in range(1, 5):
    weights_file = hf_hub_download(
        repo_id="meta-llama/Meta-Llama-3-8B",
        filename=f"model-0000{i}-of-00004.safetensors",
        local_dir="Llama-3-8B"
    )
    current_weights = load_file(weights_file)
    combined_weights.update(current_weights)

The weights contains the following tensors (only the first 15 are shown for simplicity):

list(combined_weights.keys())[:15]

['model.embed_tokens.weight',
 'model.layers.0.input_layernorm.weight',
 'model.layers.0.mlp.down_proj.weight',
 'model.layers.0.mlp.gate_proj.weight',
 'model.layers.0.mlp.up_proj.weight',
 'model.layers.0.post_attention_layernorm.weight',
 'model.layers.0.self_attn.k_proj.weight',
 'model.layers.0.self_attn.o_proj.weight',
 'model.layers.0.self_attn.q_proj.weight',
 'model.layers.0.self_attn.v_proj.weight',
 'model.layers.1.input_layernorm.weight',
 'model.layers.1.mlp.down_proj.weight',
 'model.layers.1.mlp.gate_proj.weight',
 'model.layers.1.mlp.up_proj.weight',
 'model.layers.1.post_attention_layernorm.weight']

The following function, modeled after the load_weights_into_gpt function in chapter 5, loads the pretrained weights into our Llama 3 model:

def assign(left, right, tensor_name="unknown"):
    if left.shape != right.shape:
        raise ValueError(f"Shape mismatch in tensor '{tensor_name}'. Left: {left.shape}, Right: {right.shape}")

    if isinstance(right, torch.Tensor):
        return torch.nn.Parameter(right.clone().detach())
    else:
        return torch.nn.Parameter(torch.tensor(right))


def load_weights_into_llama(model, param_config, params):
    model.tok_emb.weight = assign(model.tok_emb.weight, params["model.embed_tokens.weight"], "model.embed_tokens.weight")

    for l in range(param_config["n_layers"]):

        # Load attention weights
        model.trf_blocks[l].att.W_query.weight = assign(
            model.trf_blocks[l].att.W_query.weight,
            params[f"model.layers.{l}.self_attn.q_proj.weight"],
            f"model.layers.{l}.self_attn.q_proj.weight"
        )
        model.trf_blocks[l].att.W_key.weight = assign(
            model.trf_blocks[l].att.W_key.weight,
            params[f"model.layers.{l}.self_attn.k_proj.weight"],
            f"model.layers.{l}.self_attn.k_proj.weight"
        )
        model.trf_blocks[l].att.W_value.weight = assign(
            model.trf_blocks[l].att.W_value.weight,
            params[f"model.layers.{l}.self_attn.v_proj.weight"],
            f"model.layers.{l}.self_attn.v_proj.weight"
        )
        model.trf_blocks[l].att.out_proj.weight = assign(
            model.trf_blocks[l].att.out_proj.weight,
            params[f"model.layers.{l}.self_attn.o_proj.weight"],
            f"model.layers.{l}.self_attn.o_proj.weight"
        )
        model.trf_blocks[l].norm1.weight = assign(
            model.trf_blocks[l].norm1.weight,
            params[f"model.layers.{l}.input_layernorm.weight"],
            f"model.layers.{l}.input_layernorm.weight"
        )

        # Load FeedForward weights
        model.trf_blocks[l].ff.fc1.weight = assign(
            model.trf_blocks[l].ff.fc1.weight,
            params[f"model.layers.{l}.mlp.gate_proj.weight"],
            f"model.layers.{l}.mlp.gate_proj.weight"
        )
        model.trf_blocks[l].ff.fc2.weight = assign(
            model.trf_blocks[l].ff.fc2.weight,
            params[f"model.layers.{l}.mlp.up_proj.weight"],
            f"model.layers.{l}.mlp.up_proj.weight"
        )
        model.trf_blocks[l].ff.fc3.weight = assign(
            model.trf_blocks[l].ff.fc3.weight,
            params[f"model.layers.{l}.mlp.down_proj.weight"],
            f"model.layers.{l}.mlp.down_proj.weight"
        )
        model.trf_blocks[l].norm2.weight = assign(
            model.trf_blocks[l].norm2.weight,
            params[f"model.layers.{l}.post_attention_layernorm.weight"],
            f"model.layers.{l}.post_attention_layernorm.weight"
        )

    # Load output layer weights
    model.final_norm.weight = assign(model.final_norm.weight, params["model.norm.weight"], "model.norm.weight")

    if "lm_head.weight" in params.keys():
        model.out_head.weight = assign(model.out_head.weight, params["lm_head.weight"], "lm_head.weight")
    else:
        model.out_head.weight = assign(model.out_head.weight, params["model.embed_tokens.weight"], "model.embed_tokens.weight")
        print("Model uses weight tying.")


load_weights_into_llama(model, LLAMA3_CONFIG_8B, combined_weights)
model.to(device);
del combined_weights  # free up memory

Next, we are ready to use the model for text generation

torch.manual_seed(123)

token_ids = generate(
    model=model,
    idx=text_to_token_ids("Every effort", tokenizer).to(device),
    max_new_tokens=25,
    context_size=LLAMA3_CONFIG_8B["context_length"],
    top_k=1,
    temperature=0.
)

print("Output text:\n", token_ids_to_text(token_ids, tokenizer))

Output text:
 Every effort has been made to trace copyright holders and to obtain their permission for the use of copyright material. The publisher apologizes for any

5. Using the instruction-finetuned model#

Above, we used the pretrained base model; if you want to use a model capable of following instructions, use the "meta-llama/Llama-3-8B-Instruct" model instead, as shown below

# to free up memory

import gc

del model

gc.collect()  # Run Python garbage collector

if torch.cuda.is_available():
    torch.cuda.empty_cache()

combined_weights = {}

for i in range(1, 5):
    weights_file = hf_hub_download(
        repo_id="meta-llama/Meta-Llama-3-8B-Instruct",
        filename=f"model-0000{i}-of-00004.safetensors",
        local_dir="Llama-3-8B-Instruct"
    )
    current_weights = load_file(weights_file)
    combined_weights.update(current_weights)


model = Llama3Model(LLAMA3_CONFIG_8B)
load_weights_into_llama(model, LLAMA3_CONFIG_8B, combined_weights)
model.to(device)
del combined_weights  # free up memory

Note that the Llama 3 model should ideally be used with the correct prompt template that was used during finetuning (as discussed in chapter 7)
Below is a wrapper class around the tokenizer based on Meta AI’s Llama 3-specific ChatFormat code that constructs the prompt template

class ChatFormat:
    def __init__(self, tokenizer):
        self.tokenizer = tokenizer

    def encode_header(self, message):
        tokens = []
        tokens.append(self.tokenizer.special_tokens["<|start_header_id|>"])
        tokens.extend(self.tokenizer.encode(message["role"], bos=False, eos=False))
        tokens.append(self.tokenizer.special_tokens["<|end_header_id|>"])
        tokens.extend(self.tokenizer.encode("\n\n", bos=False, eos=False))
        return tokens

    def encode(self, text):
        message = {
            "role": "user",
            "content": text
        }

        tokens = self.encode_header(message)
        tokens.extend(
            self.tokenizer.encode(message["content"].strip(), bos=False, eos=False)
        )
        tokens.append(self.tokenizer.special_tokens["<|eot_id|>"])
        return tokens

    def decode(self, token_ids):
        return self.tokenizer.decode(token_ids)


chat_tokenizer = ChatFormat(tokenizer)

The usage is as follows:

token_ids = chat_tokenizer.encode("Hello World!")
print(token_ids)

[128006, 882, 128007, 271, 9906, 4435, 0, 128009]

tokenizer.decode(token_ids)

'<|start_header_id|>user<|end_header_id|>\n\nHello World!<|eot_id|>'

Let’s now see the Llama 3 instruction model in action:

torch.manual_seed(123)

token_ids = generate(
    model=model,
    idx=text_to_token_ids("What do llamas eat?", chat_tokenizer).to(device),
    max_new_tokens=150,
    context_size=LLAMA3_CONFIG_8B["context_length"],
    top_k=1,
    temperature=0.
)

output_text = token_ids_to_text(token_ids, tokenizer)


def clean_text(text, header_end="assistant<|end_header_id|>\n\n"):
    # Find the index of the first occurrence of "<|end_header_id|>"
    index = text.find(header_end)

    if index != -1:
        # Return the substring starting after "<|end_header_id|>"
        return text[index + len(header_end):].strip()  # Strip removes leading/trailing whitespace
    else:
        # If the token is not found, return the original text
        return text

print("Output text:\n", clean_text(output_text))

Output text:
 Llamas are herbivores, which means they primarily eat plants and plant-based foods. Here are some of the things llamas like to eat:

1. Grass: Llamas love to graze on grass, especially in the spring and summer months.
2. Hay: Hay is a staple in a llama's diet. They like to eat timothy hay, alfalfa hay, and other types of hay.
3. Grains: Llamas may also be fed grains like oats, barley, and corn. However, grains should not make up more than 10-15% of a llama's diet.
4. Fruits and vegetables: Llamas may enjoy fruits and vegetables as treats, such as

Llama 3.1 8B#

A few months after the initial Llama 3 release, Meta AI followed up with their Llama 3.1 suite of models (see the official Introducing Llama 3.1: Our most capable models to date announcement blog post for details)
Conveniently, we can reuse our previous Llama 3 code from above to implement Llama 3.1 8B

The architecture is identical, with the only change being a rescaling of the RoPE frequencies as indicated in the configuration file below

LLAMA3_CONFIG_8B = {
    "vocab_size": 128_256,   # Vocabulary size
    "context_length": 8192,  # Context length
    "emb_dim": 4096,         # Embedding dimension
    "n_heads": 32,           # Number of attention heads
    "n_layers": 32,          # Number of layers
    "hidden_dim": 14_336,    # Size of the intermediate dimension in FeedForward
    "n_kv_groups": 8,        # Key-Value groups for grouped-query attention
    "rope_base": 500_000.0,  # The base in RoPE's "theta"
    "rope_freq": None,       # Additional configuration for adjusting the RoPE frequencies
    "dtype": torch.bfloat16  # Lower-precision dtype to reduce memory usage
}

LLAMA31_CONFIG_8B = {
    "vocab_size": 128_256,      # Vocabulary size
    "context_length": 131_072,  # NEW: Larger supported context length
    "emb_dim": 4096,            # Embedding dimension
    "n_heads": 32,              # Number of attention heads
    "n_layers": 32,             # Number of layers
    "hidden_dim": 14_336,       # Size of the intermediate dimension in FeedForward
    "n_kv_groups": 8,           # Key-Value groups for grouped-query attention
    "rope_base": 500_000.0,     # The base in RoPE's "theta"
    "dtype": torch.bfloat16,    # Lower-precision dtype to reduce memory usage
    "rope_freq": {              # NEW: RoPE frequency scaling
        "factor": 8.0,
        "low_freq_factor": 1.0,
        "high_freq_factor": 4.0,
        "original_context_length": 8192,
    }
}

Reduce the context length so the model would work fine on a MacBook Air (if you have more RAM, feel free to comment out the lines below):

old_context_length = LLAMA31_CONFIG_8B["context_length"]
LLAMA31_CONFIG_8B["context_length"] = 8192


def rescale_theta(theta_old, context_length_old, context_length_new):
    scaling_factor = context_length_new / context_length_old
    theta_new = theta_old * scaling_factor
    return theta_new

LLAMA31_CONFIG_8B["rope_base"] = rescale_theta(
    LLAMA31_CONFIG_8B["rope_base"],
    old_context_length,
    LLAMA31_CONFIG_8B["context_length"]
)

print("New RoPE theta:", LLAMA31_CONFIG_8B["rope_base"])

New RoPE theta: 31250.0

As we’ve seen in the code earlier, the RoPE method uses sinusoidal functions (sine and cosine) to embed positional information directly into the attention mechanism
In Llama 3.1, via the additional configuration, we introduce additional adjustments to the inverse frequency calculations
These adjustments influence how different frequency components contribute to the positional embeddings (a detailed explanation is a topic for another time)
Let’s try out the Llama 3.1 model in practice; first, we clear out the old model to free up some GPU memory

# free up memory
del model

gc.collect()  # Run Python garbage collector

if torch.cuda.is_available():
    torch.cuda.empty_cache()

Next, we download the tokenizer
Note that since the Llama 3.1 family is distinct from the Llama 3 family, you’d have to go to the meta-llama/Llama-3.1-8B repository and acknowledge the license terms for your Hugging Face access token to work for the download
Tip: For simplicity, we only load the base model below, but there’s also an instruction-finetuned version you can use by replacing "meta-llama/Llama-3.1-8B" with "meta-llama/Llama-3.1-8B-Instruct"

tokenizer_file_path = hf_hub_download(
    repo_id="meta-llama/Llama-3.1-8B",
    filename="original/tokenizer.model",
    local_dir="Llama-3.1-8B"
)

tokenizer = Tokenizer(tokenizer_file_path)

model = Llama3Model(LLAMA31_CONFIG_8B)

total_params = sum(p.numel() for p in model.parameters())
print(f"Total number of parameters: {total_params:,}")

Total number of parameters: 8,030,261,248

combined_weights = {}

for i in range(1, 5):
    weights_file = hf_hub_download(
        repo_id="meta-llama/Llama-3.1-8B",
        filename=f"model-0000{i}-of-00004.safetensors",
        local_dir="Llama-3.1-8B"
    )
    current_weights = load_file(weights_file)
    combined_weights.update(current_weights)

load_weights_into_llama(model, LLAMA31_CONFIG_8B, combined_weights)
model.to(device);
del combined_weights  # free up memory

torch.manual_seed(123)

token_ids = generate(
    model=model,
    idx=text_to_token_ids("Every effort", tokenizer).to(device),
    max_new_tokens=25,
    context_size=LLAMA31_CONFIG_8B["context_length"],
    top_k=1,
    temperature=0.
)

print("Output text:\n", token_ids_to_text(token_ids, tokenizer))

Output text:
 Every effort has been made to trace copyright holders and to obtain their permission for the use of copyright material. The publisher apologizes for any

Llama 3.2 1B#

As of this writing, Meta AI’s latest models are the Llama 3.2 models announced here
The code for the Llama 3.2 text model is similar to that of Llama 3.1, except that the model has shrunk in size (there is a 1B and 3B version)
The other efficiency tweak was that they added back weight tying (a concept that was original used in the GPT-2 architecture); here, they reuse the same weight parameter values in the input (token) embedding layer and output layer
The small model size of Llama 3.2 1B is quite convenient, since it can even run on many mobile devices
The architectural differences between Llama 3.1 8B and Llama 3.2 1B are illustrated in the figure below

As we can see based on the figure above, the main difference between the Llama 3.1 8B and Llama 3.2 1B architectures are the respective sizes
A small additional change is an increased RoPE rescaling factor, which is reflected in the configuration file below

LLAMA31_CONFIG_8B = {
    "vocab_size": 128_256,      # Vocabulary size
    "context_length": 131_072,  # NEW: Larger supported context length
    "emb_dim": 4096,            # Embedding dimension
    "n_heads": 32,              # Number of attention heads
    "n_layers": 32,             # Number of layers
    "hidden_dim": 14_336,       # Size of the intermediate dimension in FeedForward
    "n_kv_groups": 8,           # Key-Value groups for grouped-query attention
    "rope_base": 500_000.0,     # The base in RoPE's "theta"
    "dtype": torch.bfloat16,    # Lower-precision dtype to reduce memory usagey
    "rope_freq": {              # NEW: RoPE frequency scaling
        "factor": 8.0,
        "low_freq_factor": 1.0,
        "high_freq_factor": 4.0,
        "original_context_length": 8192,
    }
}


LLAMA32_CONFIG_1B = {
    "vocab_size": 128_256,      # Vocabulary size
    "context_length": 131_072,  # Context length
    "emb_dim": 2048,            # NEW: Half the embedding dimension
    "n_heads": 32,              # Number of attention heads
    "n_layers": 16,             # NEW: Half the number of layers
    "hidden_dim": 8192,         # NEW: Almost half the size of the intermediate dimension in FeedForward
    "n_kv_groups": 8,           # Key-Value groups for grouped-query attention
    "rope_base": 500_000.0,     # The base in RoPE's "theta"
    "dtype": torch.bfloat16,    # Lower-precision dtype to reduce memory usage
    "rope_freq": {              # RoPE frequency scaling
        "factor": 32.0,         # NEW: Adjustment of the rescaling factor
        "low_freq_factor": 1.0,
        "high_freq_factor": 4.0,
        "original_context_length": 8192,
    }
}

Reduce the context length so the model would work fine on a MacBook Air (if you have more RAM, feel free to comment out the lines below):

old_context_length = LLAMA32_CONFIG_1B["context_length"]
LLAMA32_CONFIG_1B["context_length"] = 8192

LLAMA32_CONFIG_1B["rope_base"] = rescale_theta(
    LLAMA32_CONFIG_1B["rope_base"],
    old_context_length,
    LLAMA32_CONFIG_1B["context_length"]
)

print("New RoPE theta:", LLAMA32_CONFIG_1B["rope_base"])

New RoPE theta: 31250.0

Below, we can reuse the code from the Llama 3.1 8B section to load the Llama 3.2 1B model
Again, since the Llama 3.2 family is distinct from the Llama 3.1 family, you’d have to go to the meta-llama/Llama-3.2-1B repository and acknowledge the license terms for your Hugging Face access token to work for the download
Tip: For simplicity, we only load the base model below, but there’s also an instruction-finetuned version you can use by replacing "meta-llama/Llama-3.2-1B" with "meta-llama/Llama-3.2-1B-Instruct"

# free up memory
del model


gc.collect()  # Run Python garbage collector

if torch.cuda.is_available():
    torch.cuda.empty_cache()

tokenizer_file_path = hf_hub_download(
    repo_id="meta-llama/Llama-3.2-1B",
    filename="original/tokenizer.model",
    local_dir="Llama-3.2-1B"
)

tokenizer = Tokenizer(tokenizer_file_path)

model = Llama3Model(LLAMA32_CONFIG_1B)

total_params = sum(p.numel() for p in model.parameters())
print(f"Total number of parameters: {total_params:,}")

# Account for weight tying
total_params_normalized = total_params - model.tok_emb.weight.numel()
print(f"\nTotal number of unique parameters: {total_params_normalized:,}")

Total number of parameters: 1,498,482,688

Total number of unique parameters: 1,235,814,400

weights_file = hf_hub_download(
    repo_id="meta-llama/Llama-3.2-1B",
    filename="model.safetensors",
    local_dir="Llama-3.2-1B"
)
current_weights = load_file(weights_file)

load_weights_into_llama(model, LLAMA32_CONFIG_1B, current_weights)
model.to(device);
del current_weights  # free up memory

Model uses weight tying.

print("Weight tying:", torch.equal(model.tok_emb.weight, model.out_head.weight))

Weight tying: True

torch.manual_seed(123)

token_ids = generate(
    model=model,
    idx=text_to_token_ids("Every effort", tokenizer).to(device),
    max_new_tokens=25,
    context_size=LLAMA32_CONFIG_1B["context_length"],
    top_k=1,
    temperature=0.
)

print("Output text:\n", token_ids_to_text(token_ids, tokenizer))

Output text:
 Every effort is made to ensure that the information on this website is accurate. However, we cannot guarantee that the information is accurate, complete

What’s next?#

This notebook concludes the conversion from GPT to Llama 3.2
If you are interested in a more compact, standalone notebook, which only contains the Llama 3.2 code, check out the standalone-llama32.ipynb notebook

Converting Llama 2 to Llama 3.2 From Scratch

Contents

Converting Llama 2 to Llama 3.2 From Scratch#

1. Convert the Llama model implementation step by step#

1.1 Reusing Llama 2 components#

1.2 Modified RoPE#

1.3 Grouped-query attention#

1.4 Update the TransformerBlock module#

1.5 Defining the model class#

2. Initialize model#

3. Load tokenizer#

4. Load pretrained weights#

5. Using the instruction-finetuned model#

Llama 3.1 8B#

Llama 3.2 1B#

What’s next?#
